Sintered Silver Silver Chloride Reference Electrode For Brain Wave Monitoring

Standard And Reference Electrodes Sintered Silver Silver Chloride (AgCl) EEG Electrodes For Brain Wave Monitoring

Advantages of AgCl material EEG electrodes:
silver/silver chloride(Ag/AgCl) electrodes are made from very finely powdered high purity silver and silver chloride. They are mixed in a specific ratio and compacted into the electrode body at very high pressures. The resulting pallet is relatively thick (0.7mm to 1.0mm) and never needs to be rechloridized because it is a homogenous mixture.

Sensor Features:
• Top-Performance,
• Less noise (from low frequencies)
• Less offset and less polarization and contribution to DC drift than many other types of EEG electrode.
• The disc shape and bigger diameter provides fast, easy placement
• Less likely to move when properly applied
• Can be used with EEG-Paste (10-20), EEG-Gel or just using saline in conjunction with the “Free-Cap”.
• The cable has a very stable connection to the electrode body and therefore provides a long life of the sensor.
• Our (Ag/AgCl) electrodes are made from with a mixture of very finely manufactured high purity silver and
silver chloride. The sintering process was made under very high pressure but still provides a very thick layer


Wires Features
· PVC material and TPU material for selecting
· Shielding wire is optional
· 10 colors, Red, White, Green, Black, Grey, Brown, Blue, Purple, Orange, Yellow.

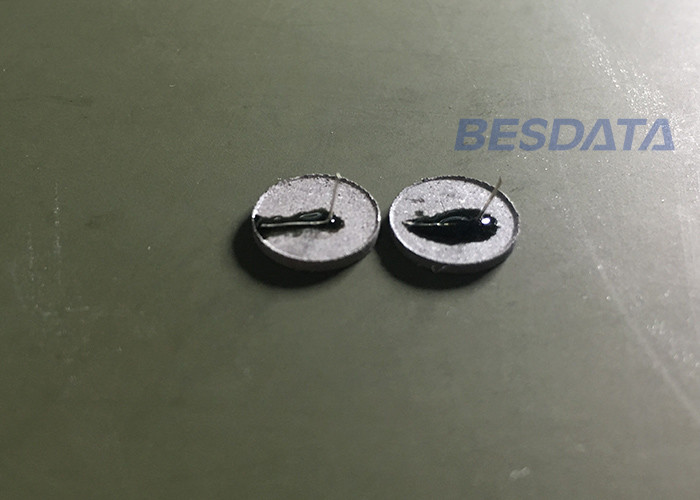

Ag-AgCl electrodes made by BESDATA have superior properties, they're made from a mixture of very finely manufactured high purity silver and silver chloride, A careful proprietary process results in a fine grain, homogeneous mixture of silver and silver chloride. The mixture is then compressed and sintered into the various configurations. A pliable silver wire is imbedded in the Ag-AgCl matrix to provide electrical connection by soldering or other means.
Unlike plated or chlorided silver, BESDATA Ag-AgCl electrodes are homogeneous throughout. If the surface is damaged or contaminated, a new surface can be exposed to restore the original performance of the electrode.
Ag-AgCl electrodes are nontoxic because of their stability and reproducibility, Ag-AgCl electrodes make excellent STANDARD and REFERENCE electrodes

properties of different types of electrodes when used in combination with a chloride containing gel

sintered ag agcl electrodes

active eeg electrodes
